SLC-1740 - 北京鼎信优威光子科技有限公司

SLC-1740的尺寸为40 x 17 x 8.5 mm³，位移台的行程范围为26毫米，正常负载30N。

Download Spec Sheet	Mechanical
Travel [mm]	26
Blocking Force [N]	≥ 3.5
Max. Normal Force [N]	30
Max. Lift Force [N]	> 1.5

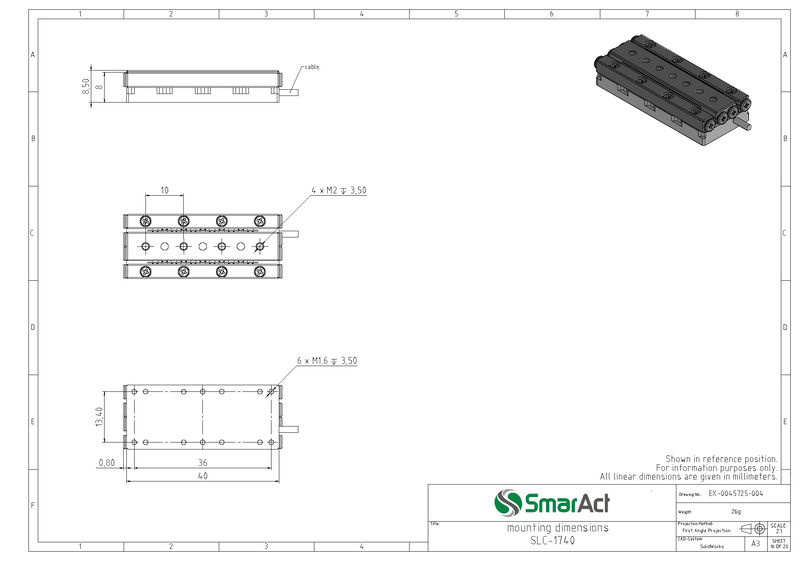

Dimensions [mm]	40 x 17 x 8.5
Weight [g]	26
	Open-loop
Velocity [mm/s]	> 20
Resolution [nm]	< 1
	Closed-Loop
Closed-Loop Resolution MCS2 [nm]	1 (S), 4 (L)
Closed-Loop Repeatability, Full Stroke MCS2 [nm]	±40 (S), ±80 (L)
Closed-Loop Resolution (H)CU [nm]	50 (L)
Closed-Loop Repeatability, Full Stroke (H)CU [nm]	±1000 (L)
	Options
Material Options	Aluminum base as standard; Steel base (-ST); Titanium base (-TI); Black anodized (-BK)

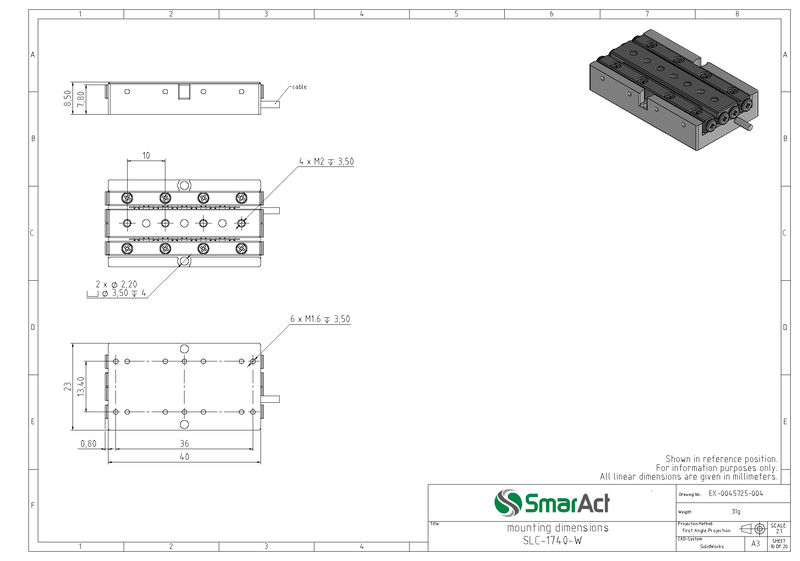

Mechanical Options	U-shaped base for higher mechanical strength (-W) increases width to 23 mm; increased lifetime (-Z)
Performance Options	Higher blocking force (-D): +1.5 N
Cryogenic Option	Yes (only open-loop)
Vacuum Options	HV (1E-6 mbar); UHV / UHVT (1E-11 mbar)
Non-Magnetic Option	Yes, changes of the slide hole pattern apply: all threaded holes

	CU 和 HCU 具有一个或三个通道驱动器的控制系统，可作为OEM板或集成式手持控制器。
	MCS2 MCS2是SmarAct最通用的模块化控制系统。
