HPM-100
HPM-100产品参数
|

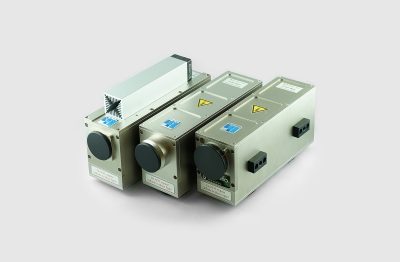

HPM-100混合型单光子探测器
|
|||||
|
型号
|
HPM-100-06
|
HPM-100-07
|
HPM-100-40
|
HPM-100-42
|
HPM-100-50
|
|
阴极类型
|
-06
|
-07
|
-40
|
-42
|
-50
|
|
波长范围/ nm 1）
|
220-650
|
220-850
|
250-720
|
300-850
|
400-900
|
|
探测器量子效率1）
|
28％
@ 400纳米
|
26％
@ 290纳米，18％
@ 400纳米
|
45％
@ 500纳米
|
22％
@ 500纳米
|
20％
@ 600纳米
|
|
光谱灵敏度：单击此处
|
|||||
|
暗计数率（典型值）/ s -1，T 情况 = 22°C
|
15
|
<300
|
400
|
470
|
1100
|
|
主动冷却的HPM的暗计数率（典型值）/ s -1，T 情况 = 30°C
|
<15
|
<150
|
80
|
320
|
350
|
|
渡越时间
（TCSPC IRF / FWHM，典型值）
|
<20 ps
|
120 ps
|
150 ps
|
170 ps
|
|
|
理想 计数率（连续）
|
> 10 MHz
|
||||
|
单电子响应宽度（FWHM，典型值）
|
850 ps
|
||||
|
单电子响应幅度（V apd为V max的 95％）2）
|
50毫伏
|
||||
|
过载关机
|
> 15 MHz（根据要求提供更高的速率）
|
||||
|
信号输出
|
|||||
|
输出极性
|
负
|
||||
|
输出接头
|
SMA
|
||||
|
输出阻抗
|
50Ω
|
||||
|
电源
|
|||||
|
（来自DCC-100卡）
|
+12 V，+ 5 V，-12 V
|
||||
|
通用信息
|
|||||
|
阴极直径
|
6毫米
|
3毫米
|
3毫米
|
3毫米
|
3毫米
|
|
尺寸（宽x高x长）
|
（60 x 90 x 170）毫米
|
||||
|
光学适配器
|
C-Mount接口，DCS-120，LSM 710/780/880 NDD和BIG端口
|
||||
|
所有HPM-100检测器均提供冷却版本
|
|||||
（1）符合Hamamatsu规范
（2）随阴极类型和制造批次而异
